Leon® Detail Series 3" Ultra-Thin On-Wall Surround Speaker

Model #: Ds44UX
137460
Leon
At a Glance
Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models as thin as only 2.25” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity.
Available in Store Only
$900.00Save $NaN
$900.00

Get to know this product.

Leon’s on-wall rear channel surround speakers are handcrafted from solid 1” MDF. With two models as thin as only 2.25” deep, they provide an excellent alternative to in-wall speakers, allowing for easy installation, better stereo imaging, and enhanced sonic clarity. The Detail Ds44 and Ds44UX surrounds perfectly complement the Horizon Hz44 and Profile Pr44 Series speakers.

  • Sonically-matched rear surrounds complement Horizon Hz44 and Profile Pr44 Series speakers
  • Can be built to any dimension to fit into custom cabinetry or niche
  • Sleek designs, as thin as 2.25” deep, allows for unobtrusive on-wall installation
  • Can be custom painted or built with beautiful hardwood cabinets
  • Available with Leon’s exclusive FlexMount™ articulating bracket for perfect stereo imaging
  • Solid MDF construction, handcrafted in the USA

Specifications

  • Material: MDF enclosure
  • Finish: Black, White or any custom finish
  • Grill: Standard woven fabric
  • Connections: Spring-loaded terminals
  • Components: 4″ ultra-thin woofers; 1″ silk-dome tweeters
  • Impedance: 6Ω
  • Recommended Power: 25-125W
  • Max. Output: 100dB avg, 104dB peak
  • Coverage: Vert: 110°, Hor: 140°
  • Frequency Response: 110–20kHz
  • Sensitivity: 88dB @ 2.83V/1m
  • Mounting: DsFMB, FLSH, DsTTS

Dimensions

  • Depth without grill: 2.25”
  • Weight: 20-40 lbs.

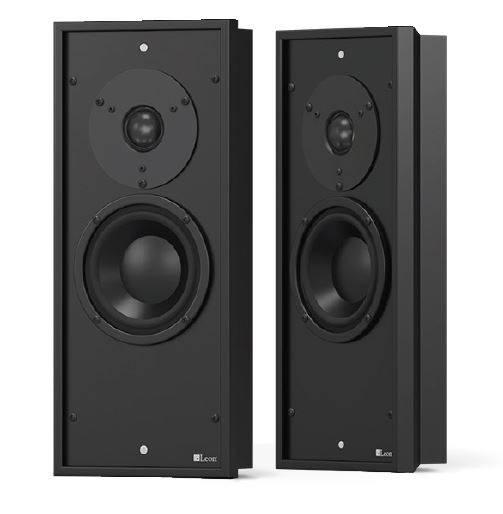

*Image available shown with Ds44 and Ds44UX speakers; both are sold separately.

Useful Documents
Specifications

Connections

Connector Type:Spring-Loaded Terminals

Construction

Tweeter Composition:Silk Dome

Specifications

Speaker Output Power:104 dB
Sensitivity:88dB @ 2.83V/1m

Misc. Specs

RMS Power Handling (Watts)125
Impedance6 ohms
Maximum Power Handling (Watts)125W
Speaker TypeSurround Speakers
Depth (in.)2.5
Height (in.)14
Width (in.)6
Woofer Size4"
