Product Dimensions 11.6"h x 13"w x 1.5"d

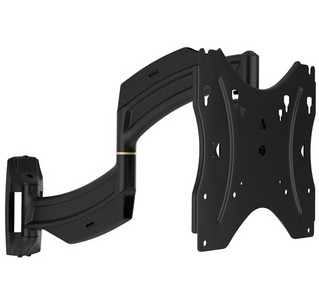

Chief® Professional AV Solutions Small THINSTALL™ Dual Swing Arm Wall Mount is a lightweight, low-profile full-motion wall mount for TVs 10-32".Read More
Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
Extends up to 18" (457 mm) Full extension maximizes viewing potential.
Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
Arms can be positioned on the right or left when in the home position.
General Specs | |
| Product Weight (lbs.) | 8 |
| Depth (in.) | 1.5 |
| Width (in.) | 13 |
| Height (in.) | 11.6 |
| TV Size's up to (in.) | 32 |
| Weight Capacity (lbs.) | 35 |
| Mounting Location | Wall |
General | |
| Certifications | UL Listed |
| Color | Black |
| Maximum Extension | 18" (457.2 mm) |
| Maximum Screen Thickness | 3" (76 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75, 100 x 100, 200 x 100, 200 x 200mm |
| Pivot Numerical Value | ±90° (depending on screen width) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 8 lbs (3.63 kg) |
| Solution Type | Universal |
| Tilt | + 0° , - 12° |
| Typical Screen Sizes | 10 - 40" |
| Wall Stud Compatibility In | Single Stud |
| Weight Capacity | 35 lbs (15.9 kg) |
| Orientation | Landscape, Portrait |
