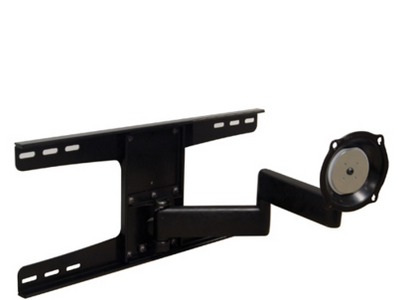

Chief® Professional AV Solutions Black Medium Flat Panel Swing Arm Wall Mount


Model #:

JWDSKVB

Model #: JWDSKVB
83136
Chief
$636.00

At a Glance

Product Dimensions 13.0"h x 26.0"w x 3.4"d

Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.Read More

Available in Store Only
$636.00

People also viewed:

Get to know this product.

Product Overview

Product Overview

Mounts a dual swing arm to 16", 20", or 24" on-center steel studs

Centris Technology provides smooth, fingertip tilt in any direction

Smooth extension over 20" (517 mm) to achieve the ideal viewing angle

Folds in close to the wall for a low-profile appearance

Quick, easy cable management

All mounting hardware included

VESA&reg 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)

Useful Documents
Specifications

General Specs

Product Weight (lbs.)28
TiltYes
Depth (in.)3.4
Width (in.)26.0
Height (in.)13.0
TV Size's up to (in.)45
Weight Capacity (lbs.)75
Mounting LocationWall

General

ColorBlack
Maximum Extension20.4" (518.2 mm)
Minimum Depth3.4" (86.4 mm)
Mounting Pattern Compatibility (Universal Versions)100 x 100mm, 200 x 100mm, 200 x 200mm
NotesDepth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
Overall Dimensions (H x W x D)13.0" x 26.0" x 3.4" (331 x 660 x 87mm)
Post-Installation Leveling RollYes
Shipping Weight28 lbs (12.7 kg)
Solution TypeUniversal
Tilt+ 15° , - 15°
Typical Screen Sizes20 - 43"
Wall Stud Compatibility InMetal StudsLCM3X3U,, 24
Weight Capacity75 lbs (34 kg)
OrientationLandscape
WarningProposition 65 Warning for California Residents
