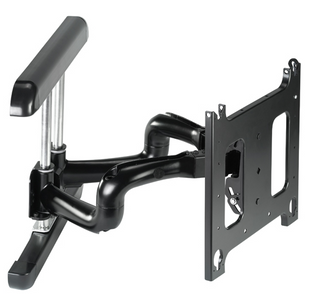

Chief® Professional AV Solutions Black Large Flat Panel Swing Arm Wall Mount

Model #: PNRUB-G

$812.80

At a Glance

Chief® Professional AV Solutions Large Flat Panel Swing Arm Wall Mount with post installation height adjustment and extends up to 25 for viewing from any angle

WarningProposition 65 Warning for California Residents
Chief® Professional AV Solutions Black Large Flat Panel Swing Arm Wall Mount

Misc. Specs

Product Weight (lbs.)66
TiltYes
Depth (in.)3.3
Width (in.)27.1
Height (in.)21.2
TV Size's up to (in.)71
Weight Capacity (lbs.)200
Mounting LocationWall

General

CertificationsTAA Compliant, UL Listed
ColorBlack
Lateral Shift9" (229 mm)
Manual Height Adjustment1" (25 mm)
Maximum Extension25" (635 mm)
Minimum Depth3.25" (82.6 mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)21.2" x 27.1" x 3.3" (538 x 687 x 84mm)
Post-Installation Leveling RollYes
Solution TypeUniversal, Custom
Tilt+ 5° , - 15°
Typical Screen Sizes42 - 86"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity200 lbs (90.7 kg)
OrientationLandscape, Portrait

Chief® Professional AV Solutions Black Large Flat Panel Swing Arm Wall Mount

Model #: PNRUB-G
Available in Store Only
$812.80

At a Glance

Chief® Professional AV Solutions Large Flat Panel Swing Arm Wall Mount with post installation height adjustment and extends up to 25 for viewing from any angle

People also viewed:

Get to know this product.

Key Features

Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity

Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility

Q-Latch Mounting System secures flat panel to mount with a latching flag

Easy connect/disconnect without tools

Extends up to 25 (635 mm) for viewing from any angle

CableTrac System provides channeled cable management for easy cable routing

Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Specifications

General

CertificationsTAA Compliant, UL Listed
ColorBlack
Lateral Shift9" (229 mm)
Manual Height Adjustment1" (25 mm)
Maximum Extension25" (635 mm)
Minimum Depth3.25" (82.6 mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesDepth and Extension do not include interface bracket (adds 0.5 - 1.5")
Overall Dimensions (H x W x D)21.2" x 27.1" x 3.3" (538 x 687 x 84mm)
Post-Installation Leveling RollYes
Solution TypeUniversal, Custom
Tilt+ 5° , - 15°
Typical Screen Sizes42 - 86"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity200 lbs (90.7 kg)
OrientationLandscape, Portrait

Misc. Specs

Product Weight (lbs.)66
TiltYes
Depth (in.)3.3
Width (in.)27.1
Height (in.)21.2
TV Size's up to (in.)71
Weight Capacity (lbs.)200
Mounting LocationWall
