Product Dimensions 18.25"h x 25.75"w x 2"d
Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.Read More
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

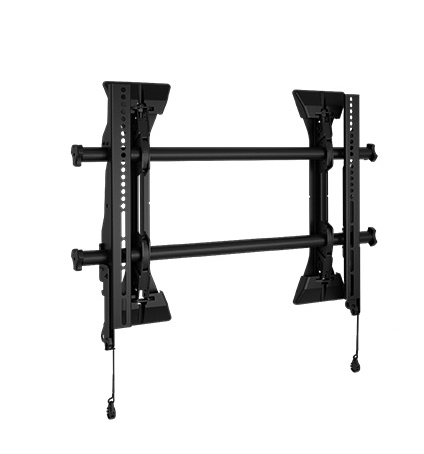

Installer-inspired Fusion® fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
ControlZone Leveling for post-installation fine tuning of height and leveling
Centerless Shift provides up to 12.9" (327 mm) of post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
General Specs | |
| Product Weight (lbs.) | 17.16 |
| Depth (in.) | 2 |
| Width (in.) | 25.75 |
| Height (in.) | 18.25 |
| Mount Type | Fixed |
| Low Profile | Yes |
| TV Size's up to (in.) | 65 |
| Weight Capacity (lbs.) | 125 |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 100 x 100 mm – 642 x 400 mm |
| Collection | Fusion® |
| Color Finish Name | Black |
| Number Of Mounts | 1 |
General | |
| Certifications | UL Listed, OSHPD Approved, TÜV Certified |
| Lateral Shift | 12.9" (327 mm) |
| Manual Height Adjustment | 1" (25 mm) |
| Solution Type | Universal |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | 16" - 24" (406 mm - 610 mm) |
| Orientation | Landscape |
