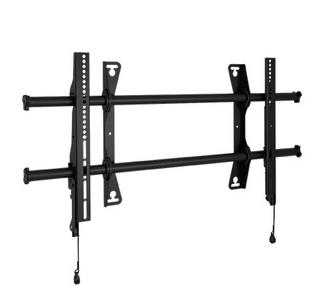

Chief® Fusion® Large Black Wall Mount
Chief® Fusion® Large Black Wall Mount 0
Chief® Fusion® Large Black Wall Mount 1
Chief® Fusion® Large Black Wall Mount 2

Chief® Fusion® Large Black Wall Mount

Model #: LSA1U
83302
Chief
At a Glance
Installer-inspired Fusion® fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Available in Store Only
$163.20

People also viewed:

Get to know this product.

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

  • Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
  • Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
  • Set screws keep the mount rigid, stable and secure throughout the life of the installation
  • ClickConnect offers an audible click when the screen safely engages with the mount
  • Built-in cable stand provides easy access under the screen
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Multiple installation options for various stud distances
  • Exclusive nesting spacers can be stacked to achieve any depth
  • Quick-Store Cords use magnets to easily store and access pull cords
  • Improved cable management with new end caps
  • Integrated Security
  • Ships with a custom hardware kit that can be hung from mount rails if installing in stages
  • Easy Open box with less waste to throw away
Specifications

General

CertificationsUL Listed, OSHPD Approved, TÜV Certified
Lateral Shift17.4" (441 mm)
Solution TypeUniversal
Typical Screen Sizes42 - 86"
Wall Stud Compatibility In16" - 32" (406 mm - 813 mm)
OrientationLandscape

Misc. Specs

Depth (in.)2
Width (in.)34.8
Height (in.)20.5
Mount TypeFixed
TV Size's up to (in.)86
Weight Capacity (lbs.)200
Mounting LocationWall
Compatible Vesa Sizes100x100mm-870x500mm
CollectionFusion®
Color Finish NameBlack
WarningProposition 65 Warning for California Residents
