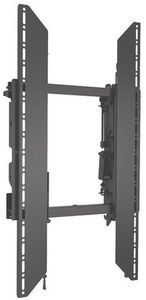

Chief® ConnexSys™ Black Video Wall Portrait Mounting System

Model #: LVSXUP

$806.40

At a Glance

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

WarningProposition 65 Warning for California Residents
Chief® ConnexSys™ Black Video Wall Portrait Mounting System

General Specs

Depth (in.)32.5
Width (in.)19.5
Height (in.)4.1
TV Size's up to (in.)80
Weight Capacity (lbs.)3487
Mounting LocationWall

General

CertificationsUL Listed
ColorBlack
Manual Height Adjustment± 1"
Maximum Extension13.4" (34.0 cm)
Minimum Depth4"
Mounting Pattern Compatibility (Universal Versions)200 x 100 - 800 x 400 mm
Number Of Monitors1
Overall Dimensions (H x W x D)32.5 x 19.5 x 4.1" (826 x 496 x 104 mm)
Shipping Weight38 lbs (17.24 kg)
Solution TypeUniversal
Tilt+ 4.0°, -2.5°
Typical Screen Sizes40 - 80"
Weight Capacity150 lbs (68 kg)
OrientationPortrait

Chief® ConnexSys™ Black Video Wall Portrait Mounting System

Model #: LVSXUP
127189
Chief

See Price in Cart

$806.40

At a Glance

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

People also viewed:

Get to know this product.

The LVSXUP ConnexSys Video Wall system portrait mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.

Speed

Hang units on a single strut channel for quick row leveling

No need for horizontal spacers

Vertical measurement is simply the height of the display to the next rail

Compatible with most 1-5/8" sizes of channel strut

Reduces installation time - especially for XL and recessed configurations

Tool-free ClickConnect™ latching secures displays

PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount

Alignment

PowerZone™ Adjustments

Height adjustment ±1" on each interface

Tilt adjustment at single pivot point, protects displays from twisting

Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations

Both sides adjust independently, compensating for imperfections in the wall

Walls can be out of alignment by up to 2" (horizontally)

3 levels of lateral adjustment

Mount left/right along rail

Interface left/right along mount

Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions

Serviceability

RapidDraw™ Display Release

Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service

Protects displays by not requiring an aggressive push to release/pop-out

Releases only on demand, preventing accidental pop-outs

The 10' (304.8 cm) cord can be set up to pull for release from any 90 degree angle

Kickstand provides 20 degrees of bottom tilt access

Rigidity

Rigid frame keeps displays where you set them, even after extending for service

Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Miscellaneous

Security - pad lock ¼" shank diameter

Safety tested

Universal interface

Each mount comes out of the box with adjustments set in the exact same position

Specifications

General Specs

Depth (in.)32.5
Width (in.)19.5
Height (in.)4.1
TV Size's up to (in.)80
Weight Capacity (lbs.)3487
Mounting LocationWall

General

CertificationsUL Listed
ColorBlack
Manual Height Adjustment± 1"
Maximum Extension13.4" (34.0 cm)
Minimum Depth4"
Mounting Pattern Compatibility (Universal Versions)200 x 100 - 800 x 400 mm
Number Of Monitors1
Overall Dimensions (H x W x D)32.5 x 19.5 x 4.1" (826 x 496 x 104 mm)
Shipping Weight38 lbs (17.24 kg)
Solution TypeUniversal
Tilt+ 4.0°, -2.5°
Typical Screen Sizes40 - 80"
Weight Capacity150 lbs (68 kg)
OrientationPortrait
