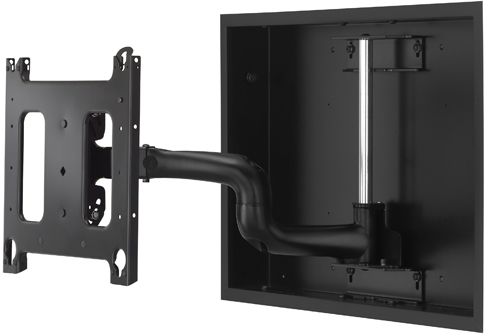

Chief® Black Large 22" Low-Profile In-Wall Swing Arm Mount
Chief® Black Large 22" Low-Profile In-Wall Swing Arm Mount 0
Chief® Black Large 22" Low-Profile In-Wall Swing Arm Mount 1

Chief® Black Large 22" Low-Profile In-Wall Swing Arm Mount

Model #: PWRIWUB
127766
Chief
At a Glance
An in-wall swing arm designed to create a low-profile installation.
Available in Store Only
$568.80

People also viewed:

Get to know this product.

Must order a PAC501B In-Wall Accessory (No separate interface bracket necessary for the PWRIWUB, this comes with the PSBUB)

  • Ships fully assembled to save on installation time
  • Must order PAC501B In-Wall Accessory
  • Easily installs into PAC501B to create an ultra low profile installation
  • Extends over 22" (569 mm) for viewing from any angle
Useful Documents
PWRIWSeries Installation Manual
PWRIW Technical Drawing
PSBU Installation Manual - Interface
PSBU Technical Drawing - Interface
Specifications

General

ColorBlack
Maximum Extension22" (558.8mm)
Minimum Depth0.5" (12.7mm)
Mounting Pattern Compatibility (Universal Versions)200 x 200mm - 862 x 517mm
NotesRequires PAC501B. PACHFK1 available. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
Post-Installation Leveling RollYes
Shipping Weight45.8 lbs (20.77 kg)
Solution TypeUniversal
Tilt+ 2° , - 15°
Typical Screen Sizes37 - 55"
Wall Stud Compatibility In16" (406 mm)
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape, Portrait

Misc. Specs

TiltYes
Depth (in.)4.5
Width (in.)30
Height (in.)20
TV Size's up to (in.)55
Weight Capacity (lbs.)125
Mounting LocationWall
